ISP Programmers

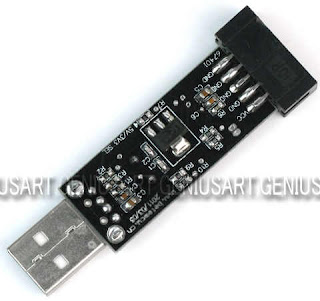

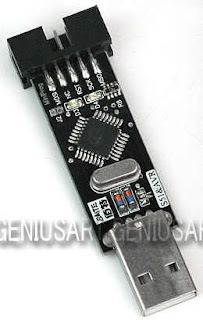

USBASP USBISP AVR Programmer

This seems to be the same item, with a detailed description.

This programmer is based on Thomas Fischl's USBasp design and connects to your computer's USB port. Not only is it quite compact, but the design is really elegant. The USB interface is achieved by using an atmega processor and the rest is done in firmware. For those interested, the firmware source code can be downloaded from the USBasp website. http://www.fischl.de/usbasp/

  • Support for AVRDude from version 5.2 onwards
  • Allows you to to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits
  • Support for Linux, Mac OS X and Windows (will work on vista)
  • 5 KB/sec maximum write speed
  • Software controlled SCK option to support targets with low clock speed (< 1.5MHz)
  • 10 pin ISP interface
  • These programmers are a perfect companion to the Protostack 28 pin AVR Development Board or the Protostack ATMEGA8 Development Kit.

Supported microcontrollers include:

Mega Series
ATmega8 ATmega48 ATmega88 ATmega168 ATmega328
ATmega103 ATmega128 ATmega1280 ATmega1281 ATmega16
ATmega161 ATmega162 ATmega163 ATmega164 ATmega169
ATmega2560 ATmega2561 ATmega32 ATmega324 ATmega329
ATmega3290 ATmega64 ATmega640 ATmega644 ATmega649
ATmega6490 ATmega8515 ATmega8535
Tiny Series
ATtiny12 ATtiny13 ATtiny15 ATtiny25 ATtiny26
ATtiny45 ATtiny85 ATtiny2313
Classic Series
AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414
AT90S4433 AT90S4434 AT90S8515
AT90S8535
CAN Series
AT90CAN128
PWM Series
AT90PWM2 AT90PWM3

  • 1 X USBASP
  • 1X 10 pin cable

Got this from this seller's ebay listing.


USBTiny USBtinyISP AVR ISP programmer

  • USBtinyISP is designed for AVR ,based on USB connector's ISP download wire.
  • Officially supported by Arduino IDE
  • SUPPORT Arduino bootloader burning onto Atmega Chips
  • 4 Screw Holes version
  • Power LED and activity LED
  • 220 U Capacitor for stable process
  • It comes with easy Programming instruction for buring Arduino bootloader and 8u2 USB interface.
  • Dual ISP interface design:
  • 6Pin used to download the Arduino control board
  • 10Pin used to download other standard ISP interface control board
  • USBTINYISP download line connection each one comes with a 6 core and 10 core
  • Arduino enthusiasts design data transfer based on USB interface, USB power or external power supply options ISP downloader in the Arduino IDE, USBtinyISP official software support has been recommended by the downloader, if you use Arduino controller. Due to negligence in operation and other reasons, resulting in damage to the controller chip firmware, and thus delay the project development cycle is a very difficult thing, now do not have to worry about, and through it with a laptop, you can easily complete the AVR chip bootloader firmware updates is an indispensable tool for production of Arduino controller, update the firmware for 1-2 minutes you can easily get to.
  • Anti-insert anti-design, download the patch is more convenient
  • ISP interface: 6-pin and 10 pin
  • Power supply options: external power supply, USB power (if the chip using the external power supply connect the PWR jumper cap removed)

Got this from this seller's ebay listing.
